Certification : API
Brand Name : Unique
Model Number : CNC-2000/2500/3000
Model NO. : CNC-2000/2500/3000
Control : CNC
Max Processing Size : 3000*2000*1500mm
Dimension of Worktable : 2500*1300mm
Main Motor : 7.5kw
Gross Motor : 11kw
Outline Dimension : 6500*6300*3800mm
Gross Weight : 5000kg
Water Consumption : 4m3/H
Color : Blue and Yellow
Transport Package : Load in a 20 Feet Container
Specification : 6500*6300*3800mm
Trademark : Xianda
Origin : Jinjiang, Fujian, China
HS Code : 84641090
Supply Ability : 1000 Sets/Year
Type : CNC Cutting Machine
Usage : Granite
Application : Art & Craft
Source Voltage : 380V
Automation : Automatic
Cutting Ability : High Speed
Customization : Available | Customized Request
CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
Max processing size | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
Dimension of worktable | mm | 2500*1300 | 2500*1300 | 2500*1300 |
Main motor | kw | 7.5 | 7.5 | 7.5 |
Gross motor | kw | 11 | 11 | 11 |
Outline dimension | mm | 6500*6300*3800 | 7000*6300*3800 | 7500*6300*3800 |
Gross weight | kg | 5000 | 5500 | 6000 |
Water consumption | m3/h | 4 | 4 | 4 |
![]() |

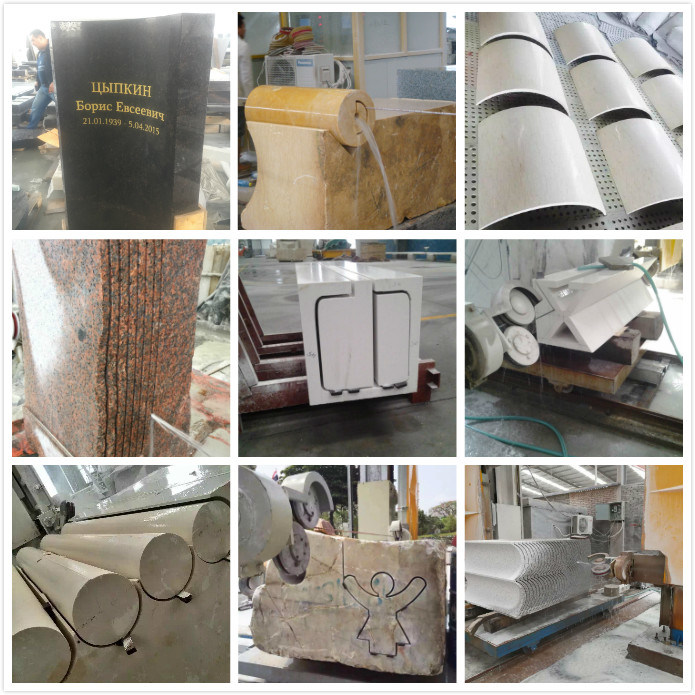

CNC Wire Diamond Wire Saw Machine Marble Granite Stone Images |
